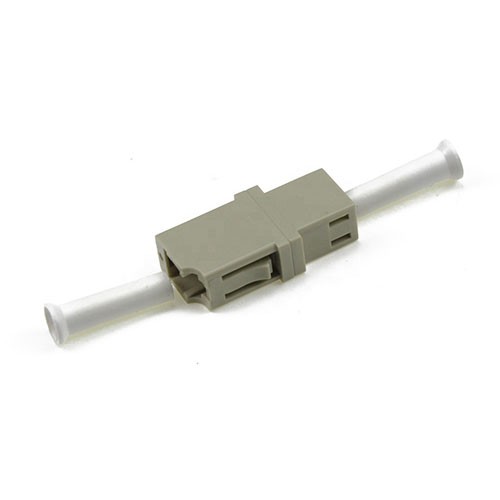

LC Simplex ADAPTER for OM4/MM/SM/LCAPC Simplex ADAPTERS for SM

LC Simplex ADAPTER for OM4/MM/SM/LCAPC Simplex ADAPTERS for SM

Insertion Loss (Typical) ≤0.2 dB
Durability Time >1000
Operating Temperature -40~75°C
Storage Temperature -45~85°C


Description

Fiber optic adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to mate two connectors.Fiber optic adapters are available for all standard connector types in both singlemode and multimode including simplex and duplex versions.Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in fiber optic adapters are color coded allowing easy identification of the adapter type.
We also offer hybrid and other special types of fiber optic adapters such as bare,shuttered and metal housing fiber optic adapters.

Feature

1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. IEC Standard, ROHS Reach compliance

Application

1. CATV
2. Telecommunication networks
3. Test equipment
4. Metro
5. Local Area Networks(LANs)
6. Data processing networks

Specification

Parameter	Unit	LC, SC, FC, ST
		SM		MM
		UPC	APC	UPC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85
