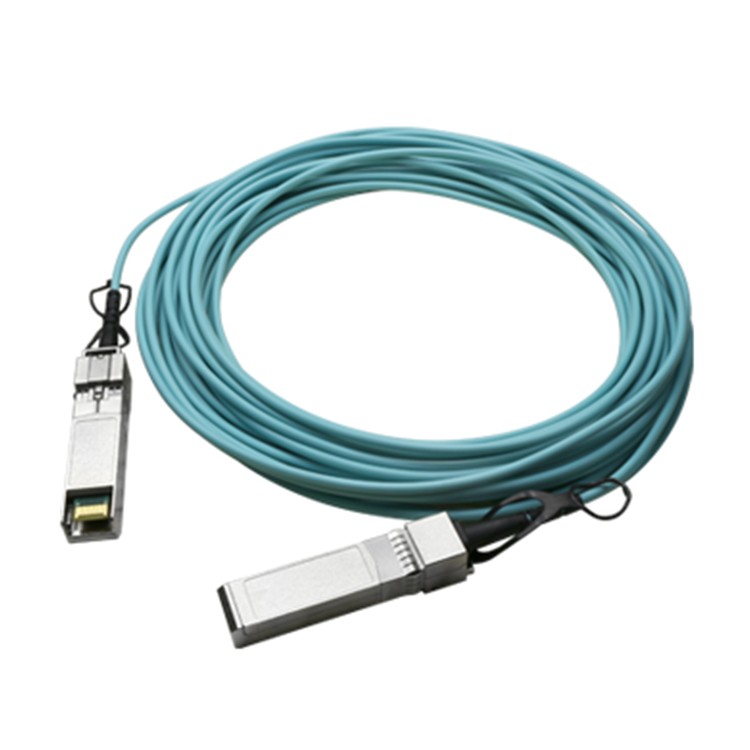

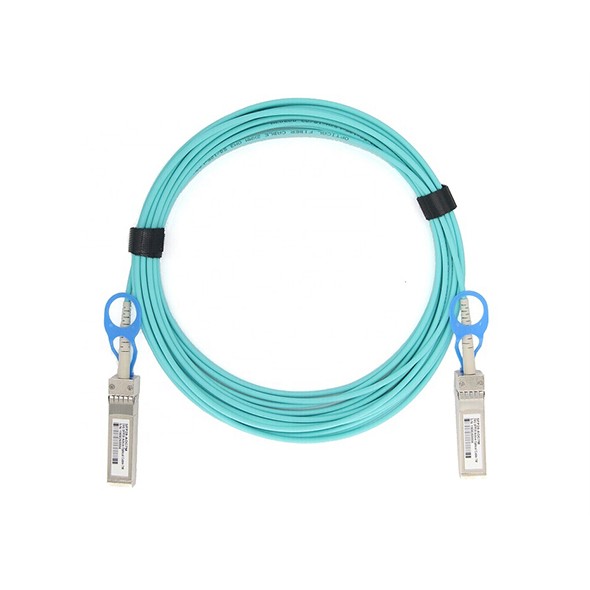

25G SFP28 AOC Active Opitcal Cable

Part No.: FOCBS00142
850nm vertical cavity surface emiƫng laser
Up to 25.78Gb/s bi-directional data links
Compliant to IEEE 802.3by
Compliant to SFP28 MSA
Operating case temperature: 0°C to 70°C


25G SFP28 AOC Active Opitcal Cable for 25 Gigabit Ethernet

Description

The 25G Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks

Features

♦850nm vertical cavity surface emiƫng laser

♦Up to 25.78Gb/s bi-directional data links

♦Compliant to IEEE 802.3by

♦Compliant to SFP28 MSA

♦Operating case temperature: 0°C to 70°C

♦Single 3.3V power supply

♦Maximum link length of 100m on OM4 Multimode Fiber(MMF)

♦Low power consumption <1W

♦Compliant to RoHS directives

♦Rigid pull-tab

♦Diagnostic features per SFF-8472 “Diagnostic
Monitoring Interface for Optical Transceivers”

Applications

♦25 Gigabit Ethernet

♦Inter-switch or inter-chassis aggregated links

♦Data center

Specification

Recommended Operating Conditions	Min.	Max.	Typ.
Operating Temperature(°C)	0	-	+70
Supply Voltage(V)	3.135	3.3	3.465
Supply Current(mA)	-	180	200
Data Rate(Gbps)	-	25.78125	-
Bit Error Ratio	-	-	10^-12
Input Swing (Differential)(mV)	180	-	900
