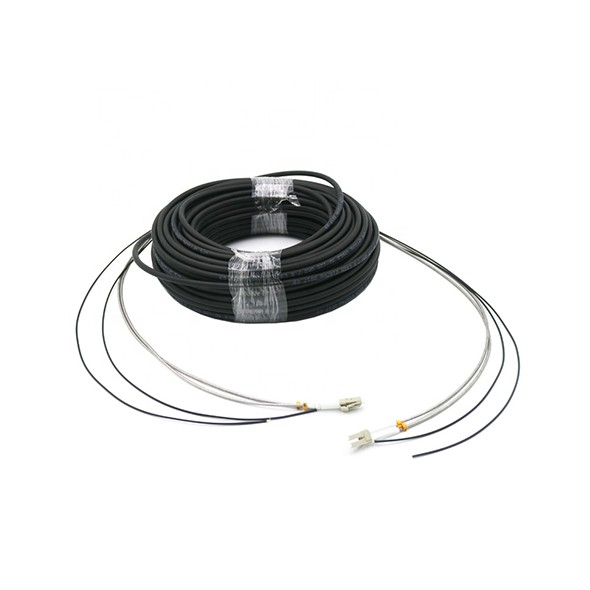

CPRI Fiber Optic Patchcord

Part No.: FOCBS0049
GYFJH 2B1(LSZH), Single mode, duplex(2.0mm), 7.0mm, black jacket

  EMAIL


FTTA (Fiber To The Antenna)/ Base Station PATCH CORD


1. Cable




CPRI optical cable assembly, all armored cable, GYFJH 2B1(LSZH), Single mode, duplex(2.0mm), 7.0mm, black jacket; with stainless steel tube protection.

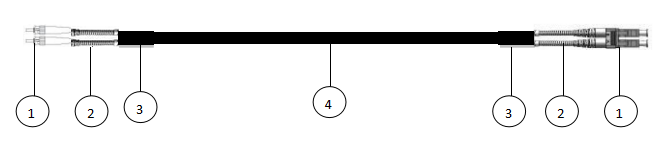

No.

Part Name

1

Connectors

2

Breakout, stainless steel tube(armor)

3

Fan-out kit

4

Optical cable, all armored, GYFJH, duplex, 7.0mm, LSZH black jacket




Specification

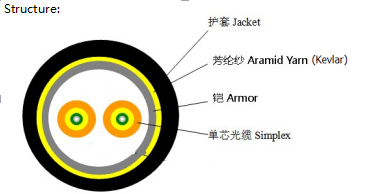

1.Cable

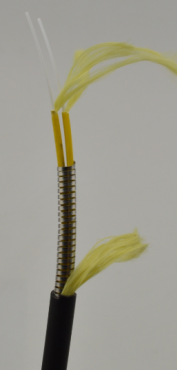

Armor:

image.png                       image.png


      2. Single mode fiber

Item

Unit

Specification

Attenuation

dB/km

1310nm≤0.4

1550nm≤0.3

Dispersion

Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength

Nm

1300~1324

Zero dispersion slope

Ps/nm.km

≤0.095

Fiber cutoff wavelength

Nm

≤1260

Mode field diameter

Um

9.2±0.5

Mode field concentricity

Um

<=0.8

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence        induced attenuation

1550nm,  1turns,32mm diameter  100rums,60mm diameter

≤0.5 db

Proof test

kpsi

≥100

       Multi mode fiber

Item

Unit

Specification

Attenuation

dB/km

850 nm≤3.5

1300 nm≤1.5

Bandwidth

MHz·㎞

50/125um

62.5/125 um

850 nm≥200

850 nm≥160

1300 nm≥200

1300 nm≥200

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence        induced attenuation

850nm,1300nm  100turns,75mm diameter

≤0.5 at 850 nm\1300 nm

Proof test

kpsi

≥100

       Each Requirement

1   –Fiber count-------2

2   – Fiber characteristic -------OD: 245±10um

4   Characteristic of tight buffered

4   OD: 0.87±0.05㎜; LSZH  simplex optical fiber cable- White 0.9㎜PVC

 - OD: 0.87±0.06㎜

Thickness:  0.30±0.03㎜

5 –    Out jacket: LSZH

      3. Connector Specification

ITEM

PARAMETER

Connector type

LC/UPC, SC/UPC, FC/UPC, ST/UPC.

LC/APC, SC/APC, FC/APC, ST/APC

Insertion Loss

<=0.2db

<=0.3db

Return Loss

>=50db

>=60db

Fiber mode

Single-mode/ Multi-mode, G.652.D

Operating wavelength

1310, 1550nm

Test wavelength

1310,1550nm

Repeatability

<=0.1

Interchangeability

<=0.2dB

Durability

<=0.2dB

Fiber Length

1m, 2m….. any length optional.

Length and tolerance

10cm

Operating Temperature

-40C ~ +85C

Storage Temperature

-40C ~ +85C
