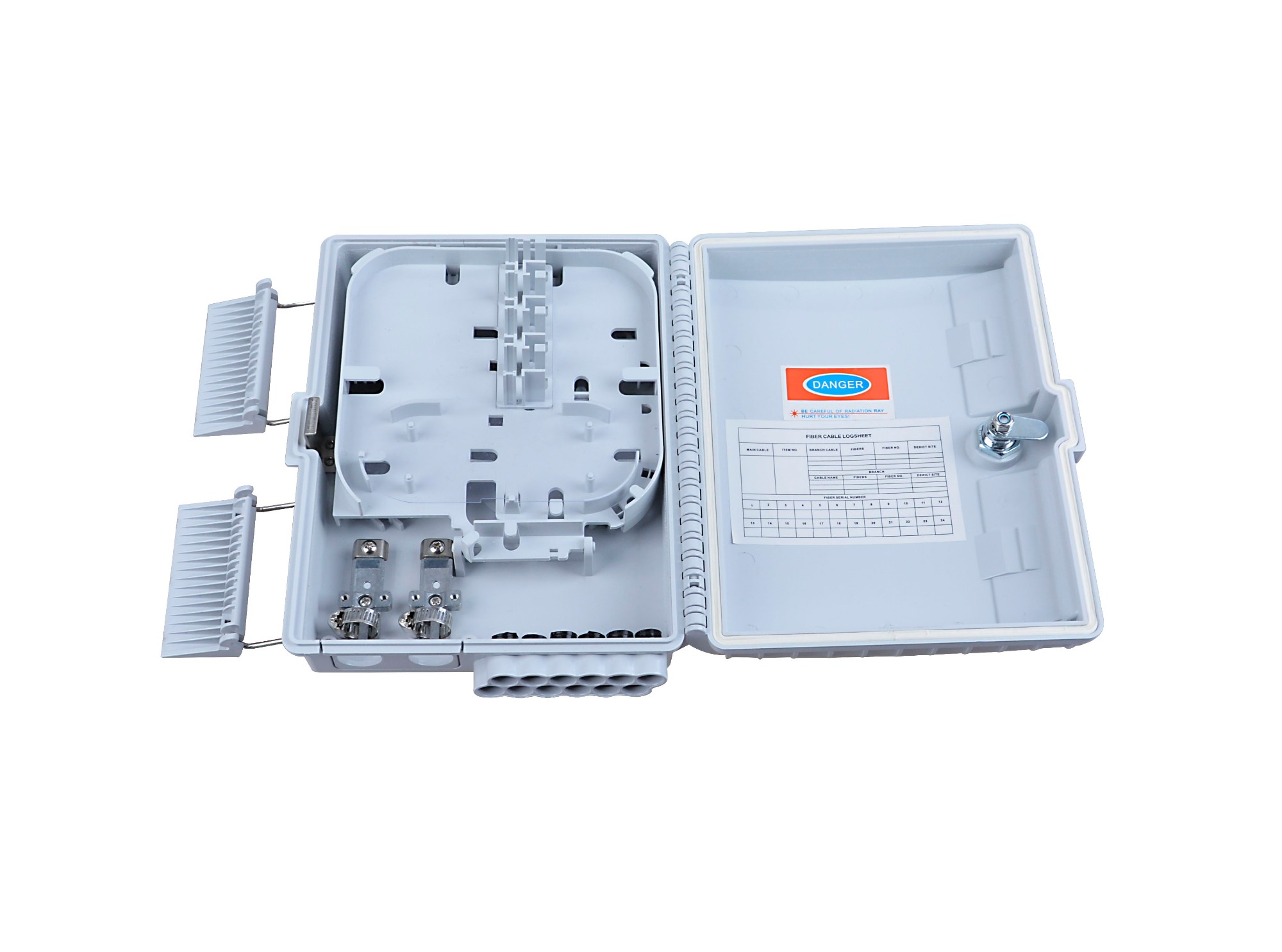

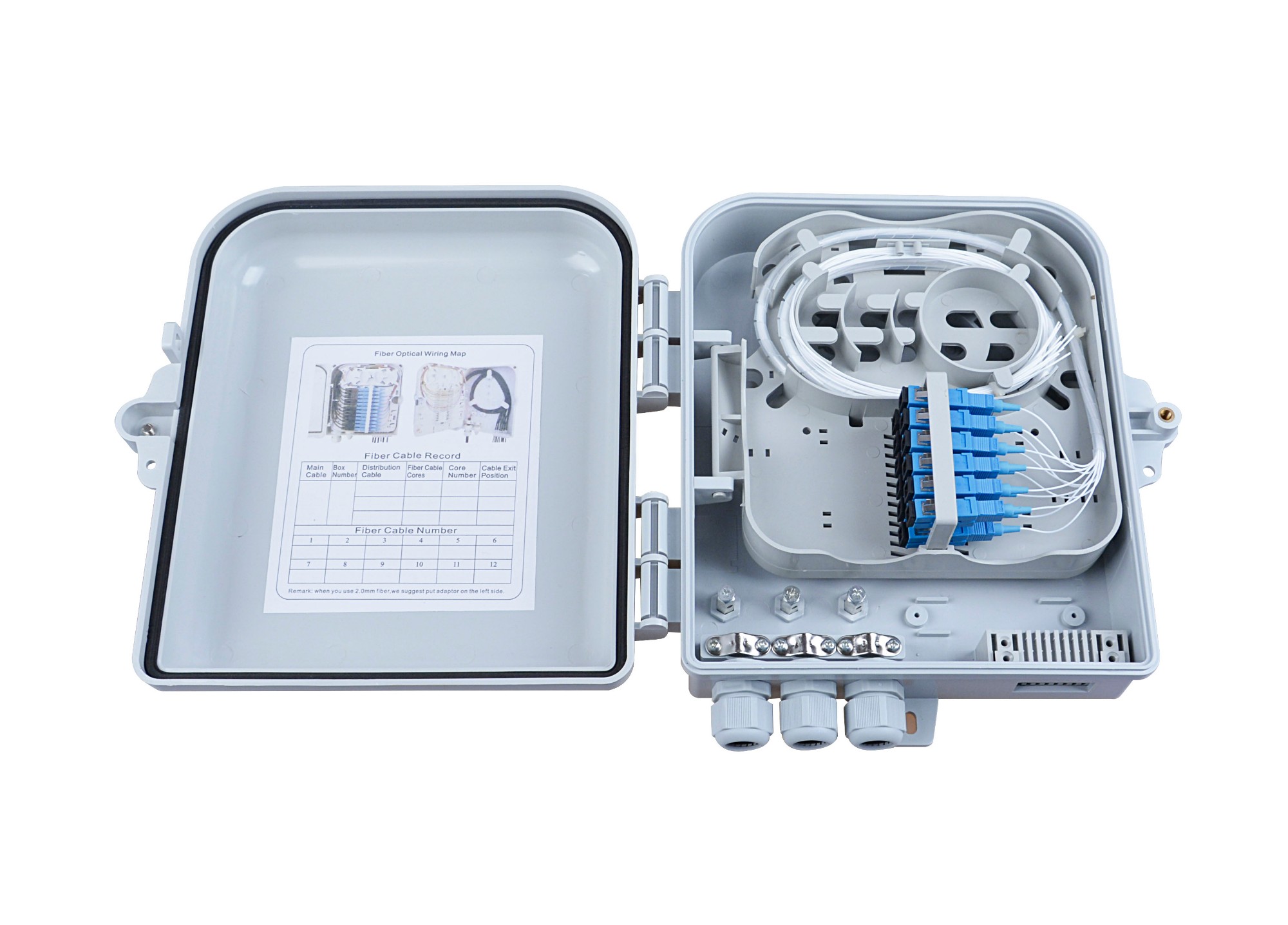

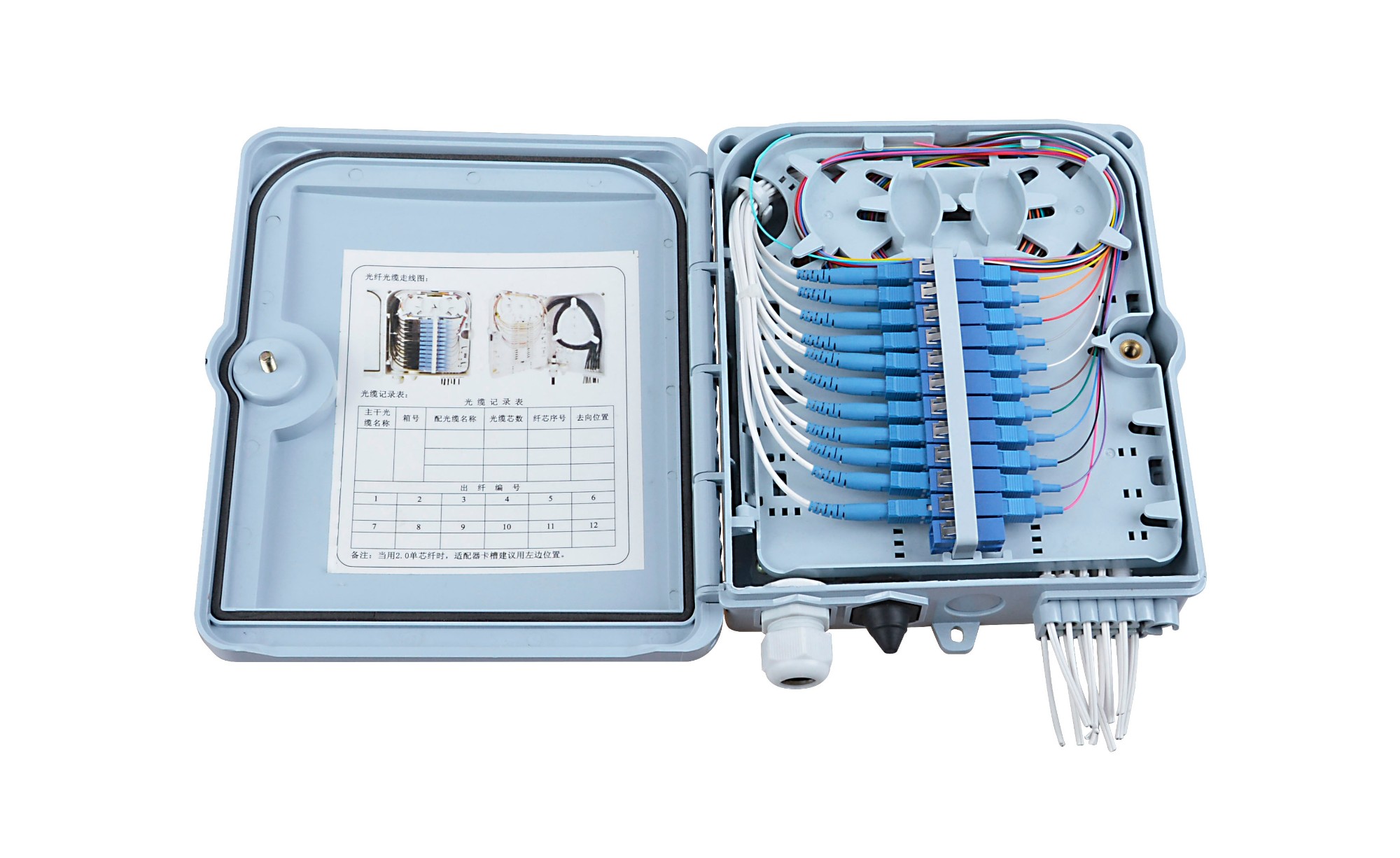

FTTH Box 12 core

Introduction:

The Optical Distribution Box is used as a termination point for the feeder cable to connect with drop

cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in

this box, and meanwhile it provides solid protection and management for the FTTx network building.

Feature:

1.Material: PC+ABS or ABS, wet-proof, water-proof, dust-proof, anti-aging.

2.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,

distribution…etc. all in one.

3.Cable, pigtails, patch cords are running through own path without disturbing each other,

cassette type SC adapter installation, easy maintenance.

4.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy

for maintenance and installation.

5.Most of the types can be installed by the way of wall-mounted or poled-mounted,

suitable for both indoor and outdoor uses.

6.Distributing optic into 2-48 by PLC splitter, protecting optic fiber

to terminal, easy to operate.

8.Can be installed with PLC splitter, optional splice tray, lock with a key

9.Entering fiber cables of 1~48 cores capacity fuse and splice with pigtails,

connecting PLC splitter pigtails.

10.FTTH cable connecting the PLC splitter pigtails through SC, FC, LC adapters panel, e

ntering into building or home.

11.IP 65 Protection Rating, antirust, dust proof, impact resistance, excellently

stable performance, long lifespan.

Application:

l Optical LAN & WAN & CATV

l FTTH project & FTTX

l Testing instruments

l Optical fiber communication networks

l PON Networks

l Optical Signal Distributio

Specification:
