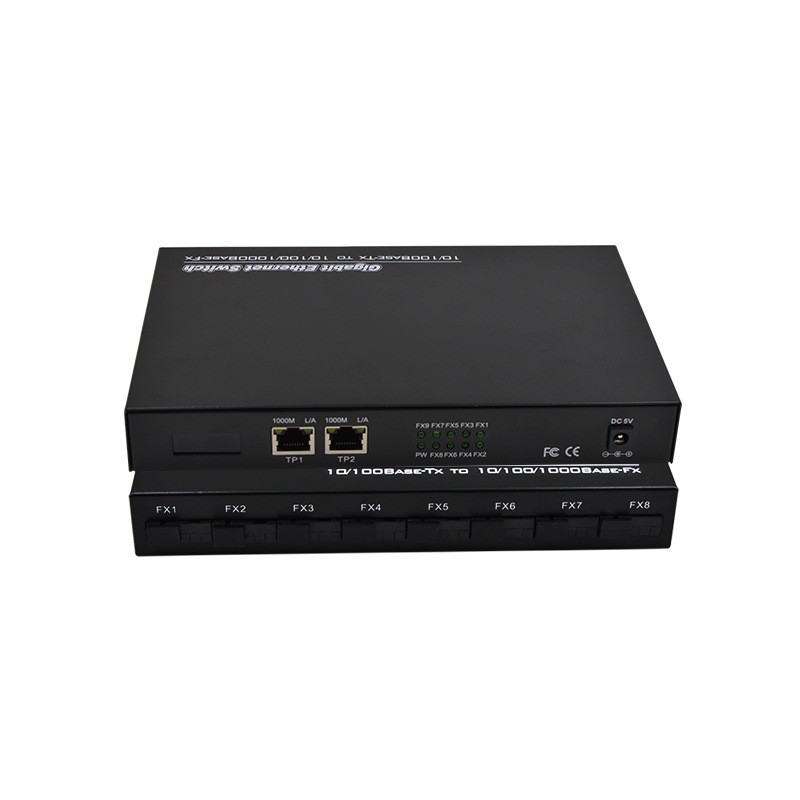

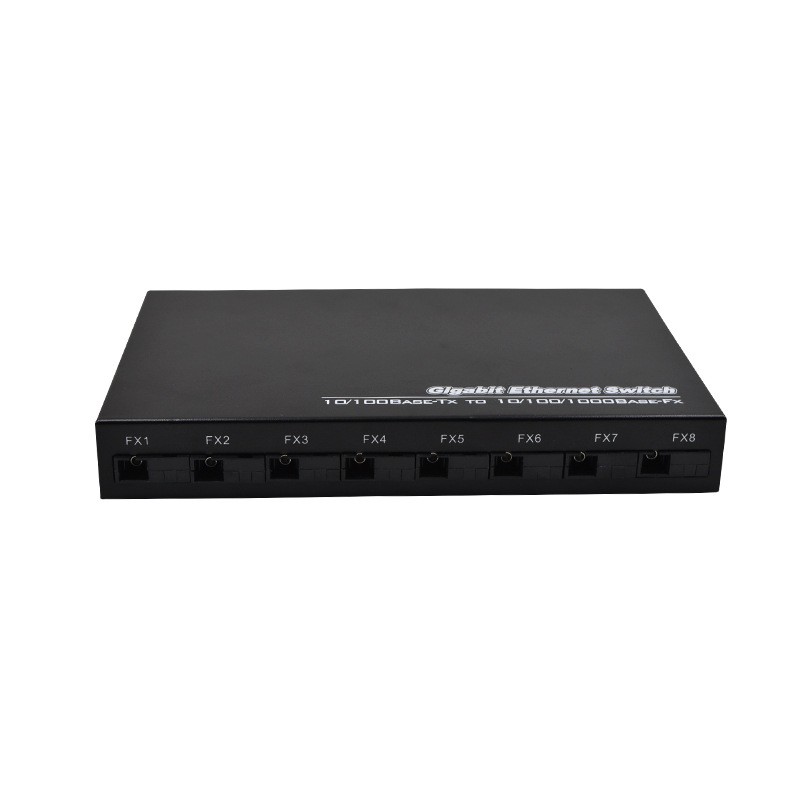

Fiber Optic Full Gigabit 2+8 Switch

Fixed Port

2*10/100/1000Base--TX RJ45 port (Data)

8*1000M Integrated SFP(optional 1310/1550)

Network Protocol

IEEE802.3

IEEE802.3i 10BASE-T

IEEE802.3u100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE802.3x

IEEE 802.3z 1000BASE-X

Port Specification

100/1000BaseT(X) Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

10Gbps

Packet Forwarding

12.96Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Single mode single fiber(MAX 20KM)

Single mode double fiber (MAX 20KM)

Multiple mode double fiber(MAX 850M/2KM)

Optional 3-100KM SFP

Watt

≤15W;

LED Indicator

PWR:Power LED

1-8:(SFP LED)\

TP1/TP2: Port LED

Port :(Green=10/100M LED+Orange=1000M LED)

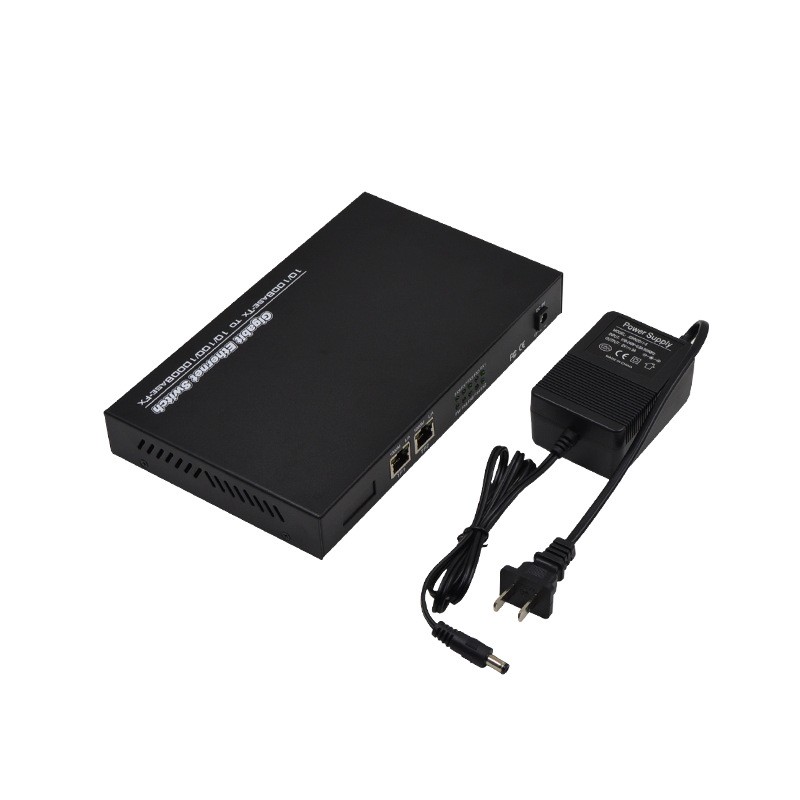

Power

External power DC 5V 3A

Operating Temperature/Humidity

-15~+65°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/Packing size(L*W*H)

215mm*134mm*30mm

295mm*255mm*55mm

N.W/G.W(kg)

0.86kg/1kg

Installation

Desktop (optional wall hanger+machine hanger parts)

Lightning Protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;MA;CNAS
