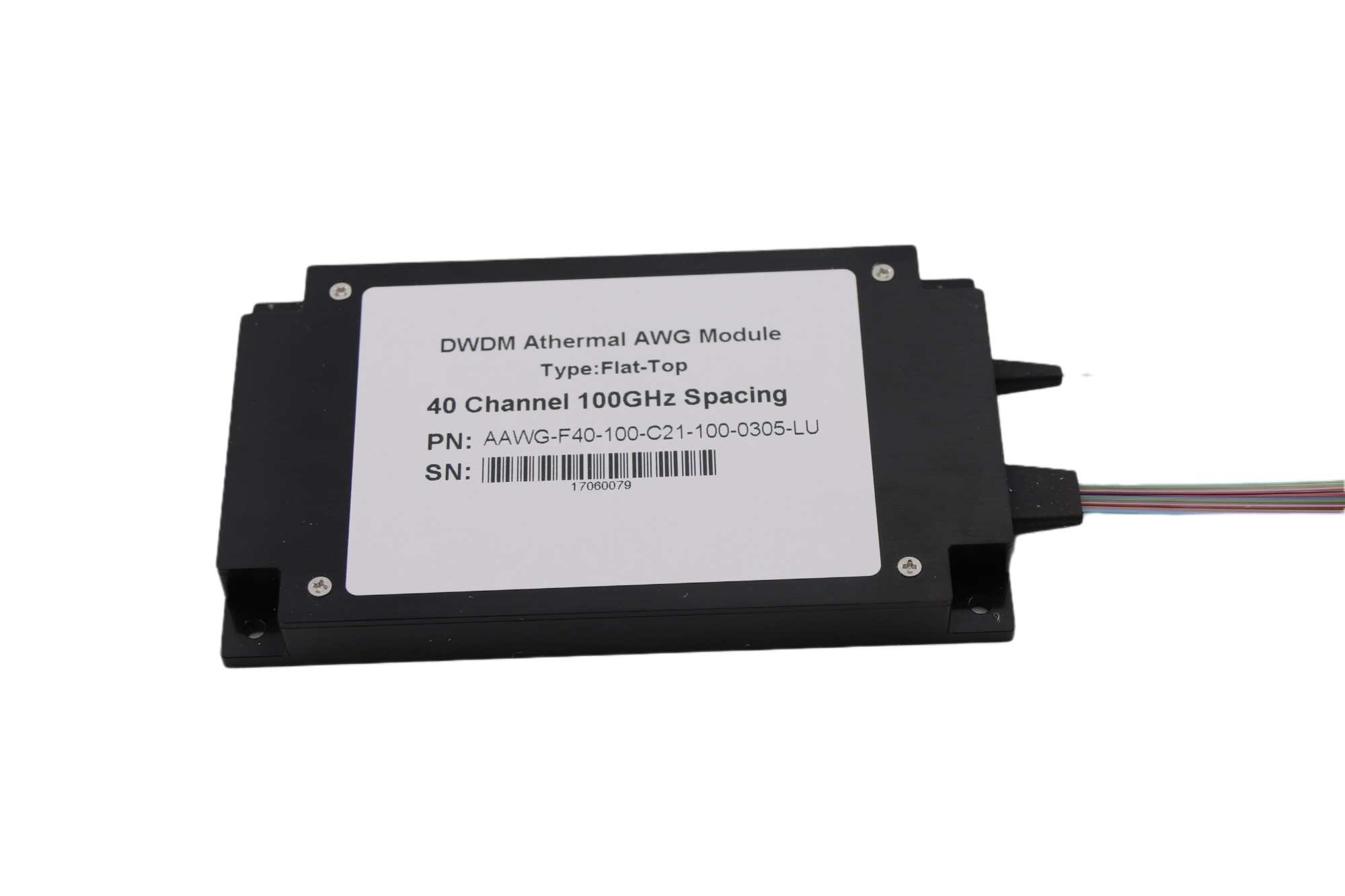

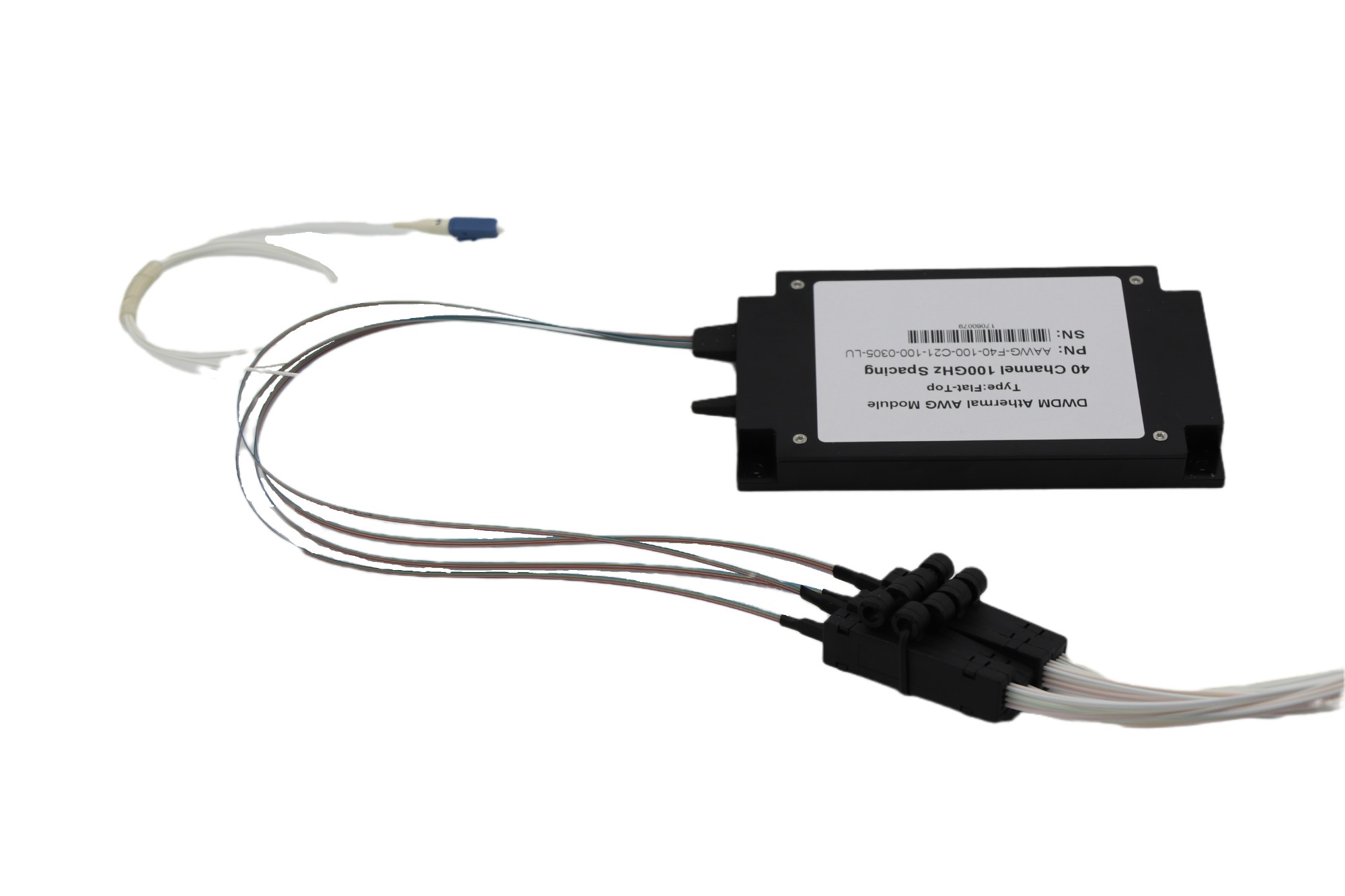

Fiber Optic AWG Modoule

Part No.: FOCBS0042
Low insertion loss, high isolation increase system margin


AWG MODUOLE

Description

AWG is a kind of integrated planar waveguide WDM device (PLC), has the function of multiplexing and reuse.

Main Features

1.Athermal design operates over operating temperature range

2.Large channel number

3.Compact size

4.High stability and reliability

5.Low insertion loss, high isolation increase system margin

Specifications

Parameter	Unit	Value			Other

		Min.	Typ.	Max.
Output Number of Channels			40
Channel Spacing	GHz		100
Operating Band			C Band
Center Wavelength Accuracy	pm	50		-50
1dB Bandwidth	pm	40
3dB Bandwidth	pm	60
Insertion Loss	dB		5.5	6.0
Ripple	dB			0.5
Insertion Loss Uniformity	dB			1.5
Adjacent Channel Crosstalk	dB			23
Non-Adjacent Channel Crosstalk	dB			30
Total Crosstalk	dB			21
Polarization Dependent Loss	dB			0.5
Polarization Mode Dispersion	ps			0.5
Chromatic Dispersion	ps/nm	-20		+20
Return Loss	dB	40
