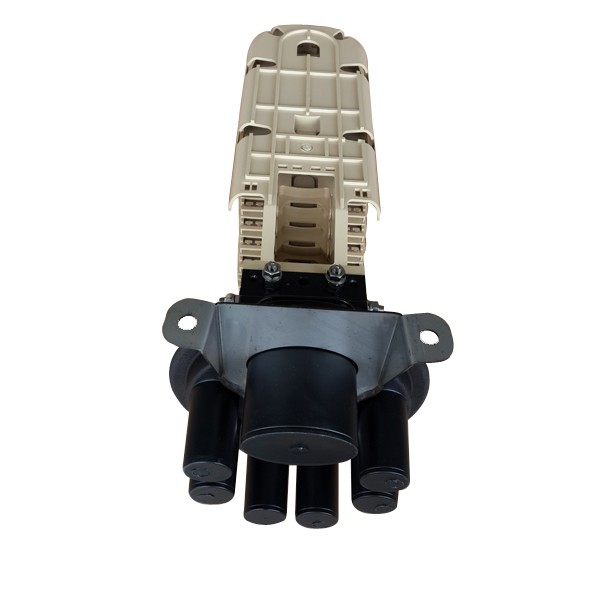

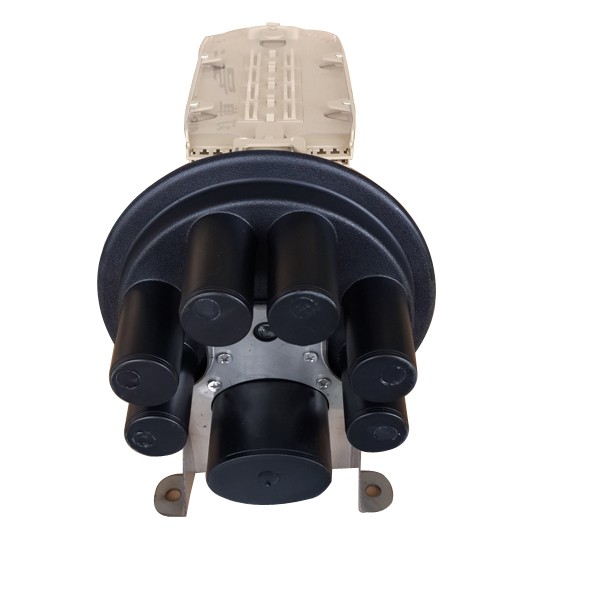

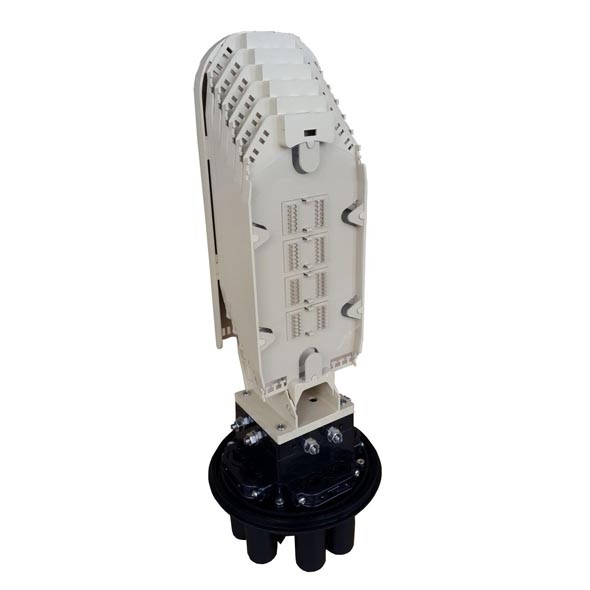

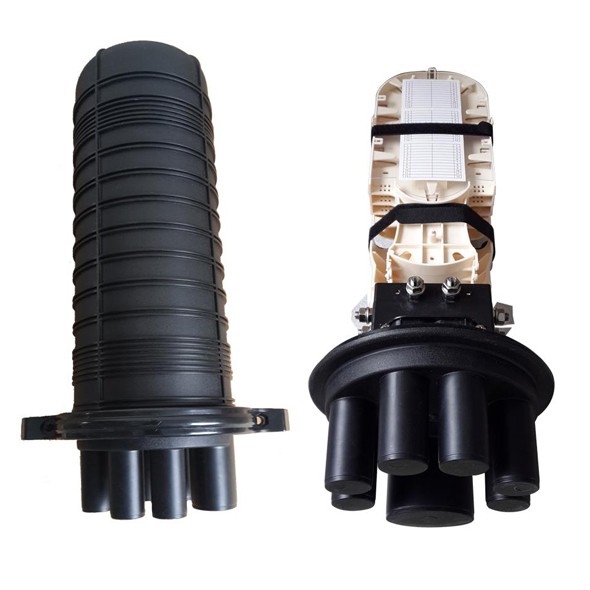

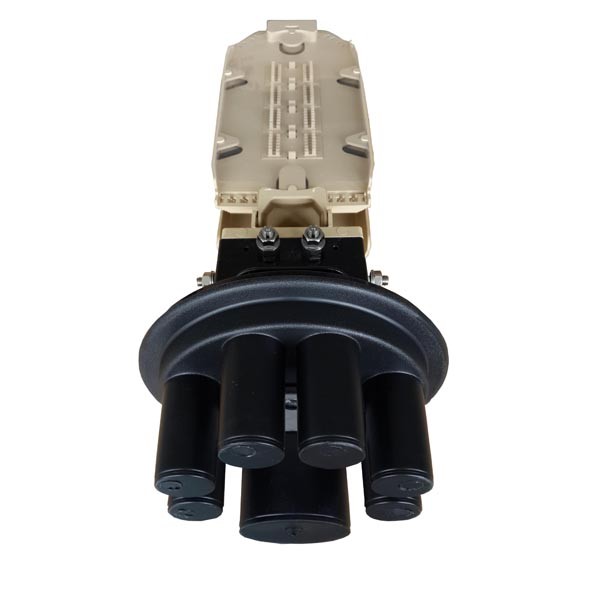

Fiber Optic Closure Dome Type 1in 6out

GJS-25-7 Waterproof Dome Fiber Optical Splice Closure, Joint Box

Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way

Weight: 6.5kg（Erect type）
Material: PC

Dimension (mm): 55*25CM（H*D）

Cables Entry & Exit：1Entry  6Exit

Cable Diameter (mm): Φ7-Φ45

Sealing Structure :Heat shrinkable Sealing

Maximum capacity: Bunchy 12-192 cores ; Ribbon:288 cores

Components: Seal tape 1PC, Insulation tape  1PC, Nylon tie  4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40℃ to +85℃

Atmospheric pressure: 70∽106KPa

Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.

Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.

Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation

Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

Insulation resistance: ≥2X10⁴MΩ

Span-life: 30 years.

It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network

Uses and properties:

It is belonged to open structure airproof tie-in system of machine pressure.

It is used for the protective connection between two or more optical cables

Suitable for single core fiber optic cable and ribbon fiber optic cable

Packaging:

4pcs/Carton

Size:60*53*57Cm

G.W.:17KGS

N.W.:15KGS
