Fiber Optic Fast Connector SC APC UPC

Part No.: FOCBS00122
Aoolicable for:Drop cable.Indoor cable
Fiber mode:Single mode or Multi mode


Mechanical SC APC SC UPC fiber optic Fast Connector ftth quick connector assembly connector

Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE

Application

1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word

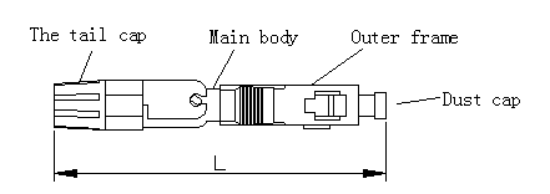

Product Structure

Measured the Structure

2. Optical Characteristics

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40~+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

3.Environmental performance requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	110℃,200H	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Low TEMP	-40℃,200H	≤0.5	≤5
TEMP Cycling	-40~85℃,3.5H/Cle,100C	≤0.5	≤5
HAST	110℃,90%RH,200H	≤0.5	≤5
Immersion	25℃,200H	≤0.5	≤5
Salt Mist	5% Nacl,6.5	≤0.5	≤5
