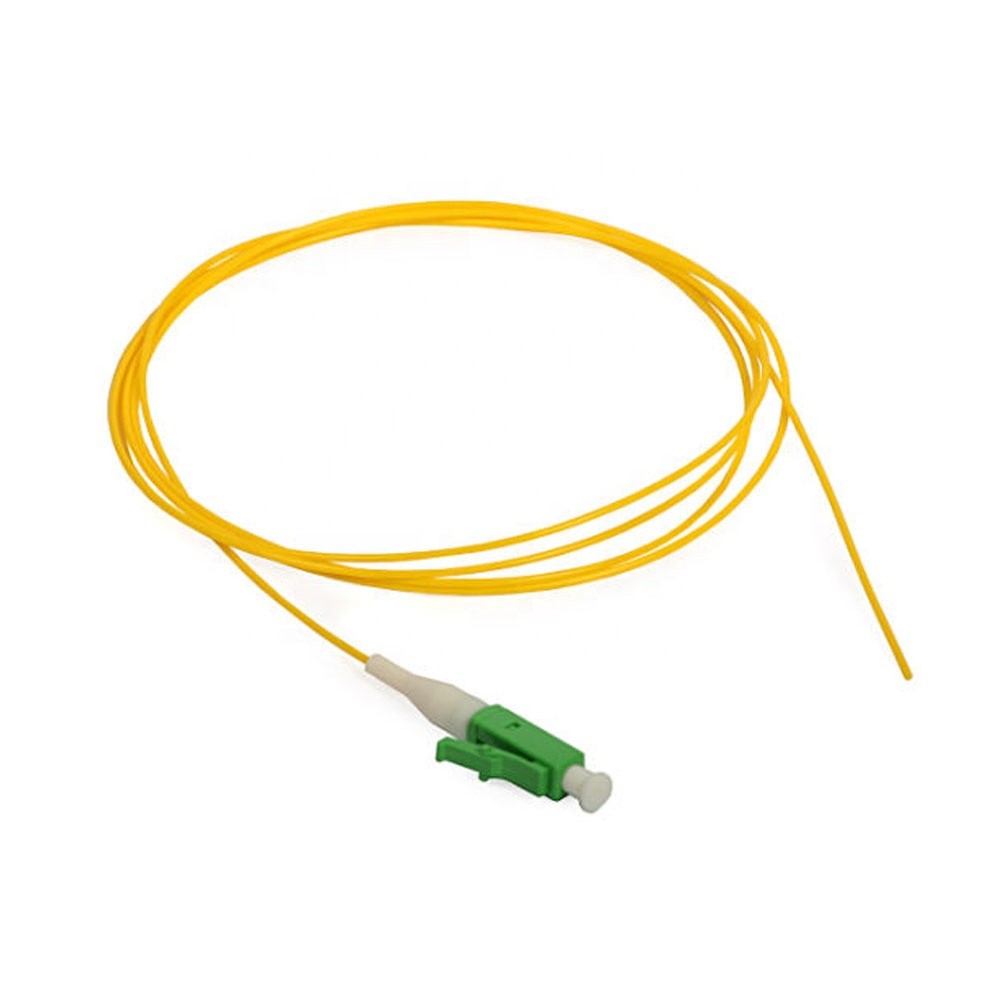

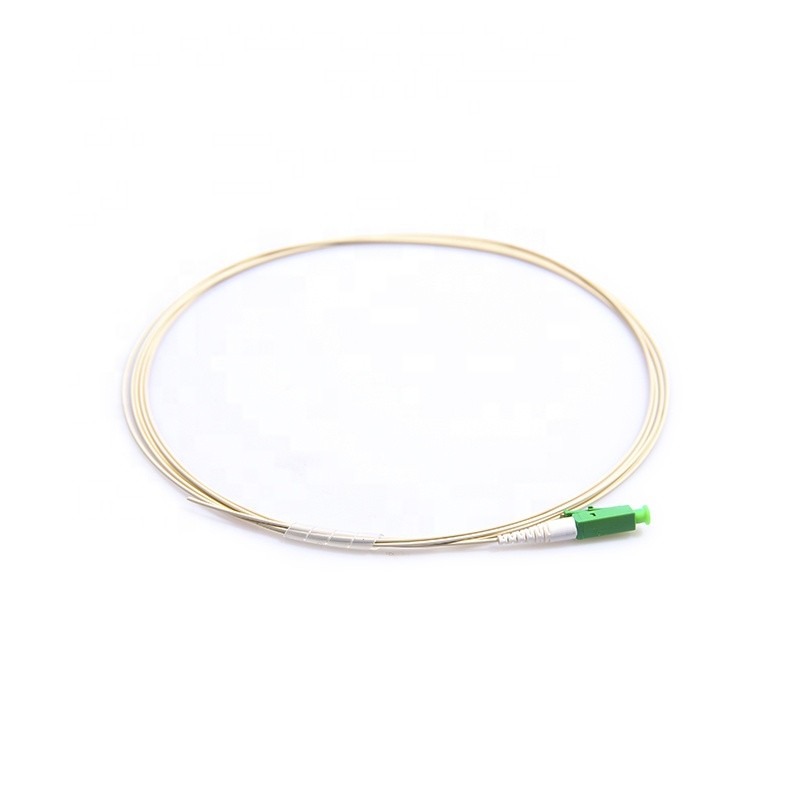

Fiber Optic Pigtail LC SM

Part No.: FOCBS00114
Fiber class:  Single-mode multimode

Polish type: UPC/APC

  EMAIL


ST SC LC FC ST MTRJ E2K MU MPO  single mode multimode OM1 OM2 OM3 OM4 OM5 fiber optical pigtails



Features:

· Many standard configurations in stock

· All standard fiber types available

· Many different cable designs available

· Many different connector options available

· 100% optical testing available

· 100% electronic testing available

· End face geometry (EFG) testing capabilities

· Design/engineering capabilities



Application:

·Optical access network

·Optical-fiber CATV

·A local area network(LAN)

·Test Equipment



 Specification:

Parameter

LC,SC,ST,FC

SM

MM

UPC

APC

UPC

Operating Wavelength(nm)

1310/1550

850/1300

Insertion Loss(dB)

≤0.20

≤0.20

≤0.20

Return Loss(dB)

≥55

≥65

≥35

Repeatability Loss(dB)

≤0.1

Interchangeability Loss(dB)

≤0.20

Repeat Piug-pull Times

≥1000

Tensil Strength(N)

≥100

Durability Loss(dB)

≤0.20

Operating Temperature(℃)

-40℃~ +75℃

Storage Temperature(℃)

-40℃~85℃



Fiber class:  Single-mode multimode

Polish type: UPC/APC

Cable color: as photos

Cable jacket: PVC LSZH OFNR OFNP

Cable diameter: 0.9,1.6,1.8,2.0,3.0mm

Package: Seperate polybag with sticker and test reports

The cable Length and color  can be customized
