LC PC Female-LC APC Male Hybrid Adapter

Part No.: FOCBS0067
Insertion Loss: ≤0.3dB
Durability (500 Mating):0.2dB Max.
Operating Temperature:-40℃~+75℃
Storage Temperature:-40℃~+85℃


LC/UPC (female) to LC/APC (male)

1.Features

n Low insertion loss

n High corrosion resistance

n High interface performance

n High return loss

n Easy to handle

n Environmentally stable

2.Applications

n Telecom network

n Ethernet network

n Optical communication equipment

3.Specifications

ITEM	PARAMETER
	Single-Mode(SM)	Multi-Mode(MM)
Insertion Loss	≤0.3dB
Durability (500 Mating)	0.2dB Max.
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+85℃
Remark: LC/PC Female to LC/APC Male Hybrid Adapter are ultra reliable components featuring low insertion loss and back reflection loss.

4.Photo

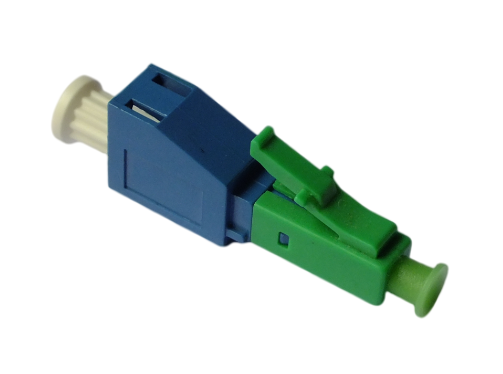

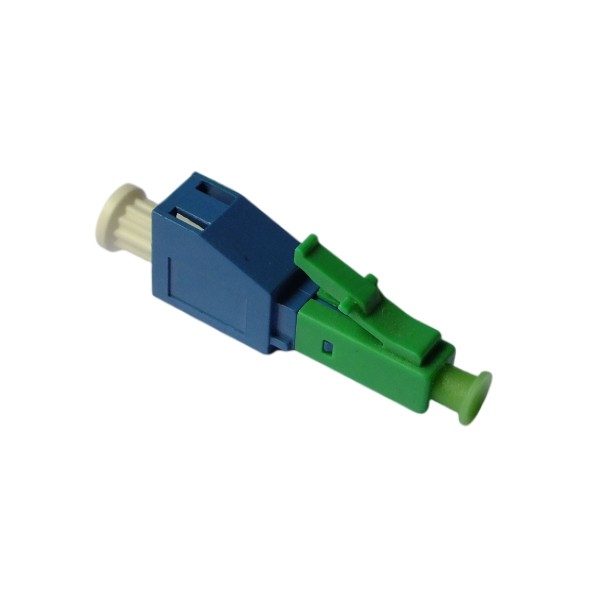

LC/UPC (female) to LC/APC (male) SM
