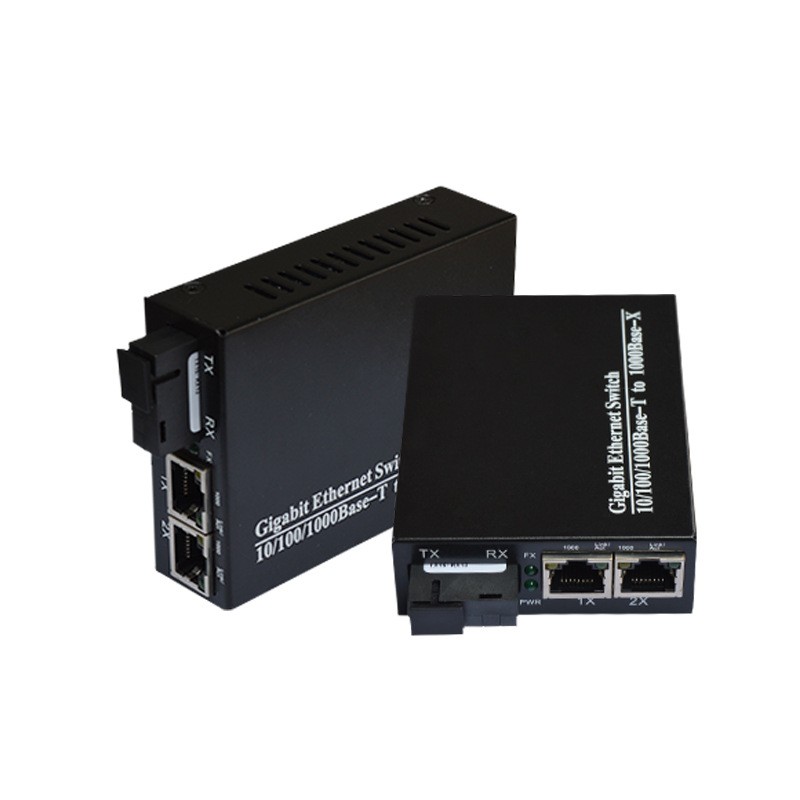

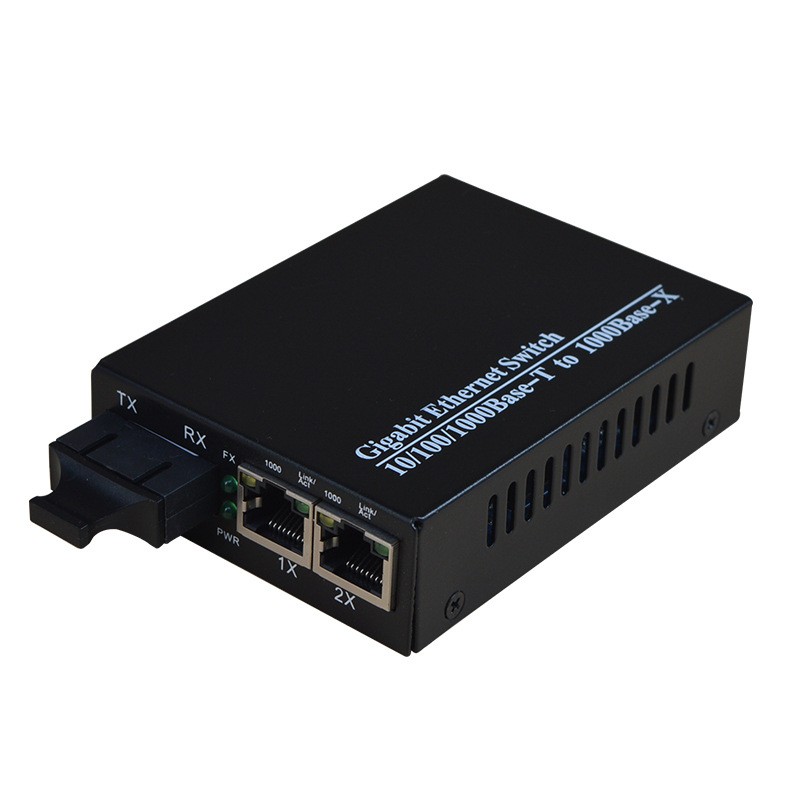

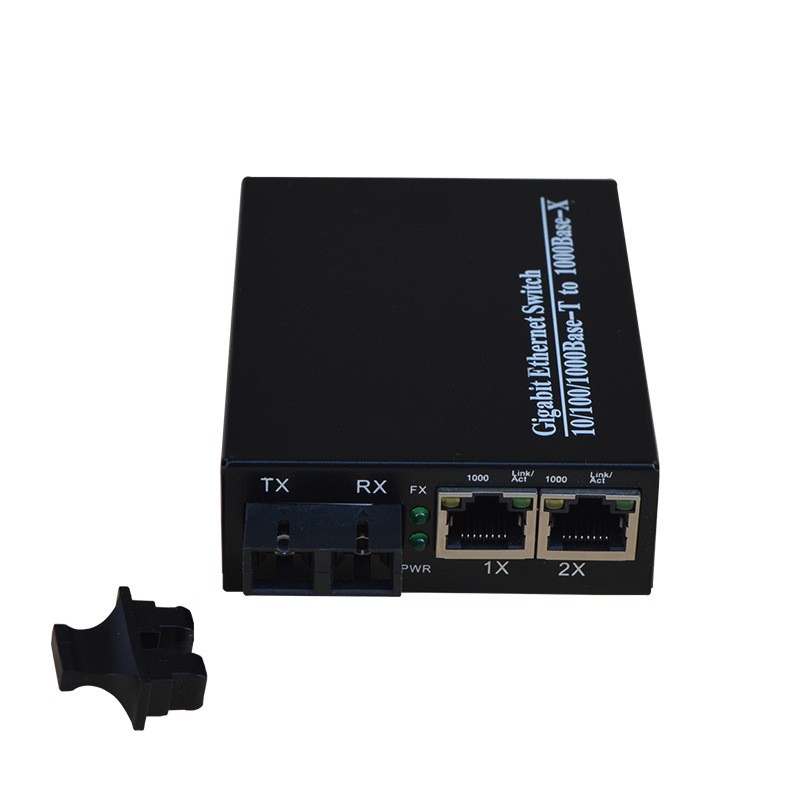

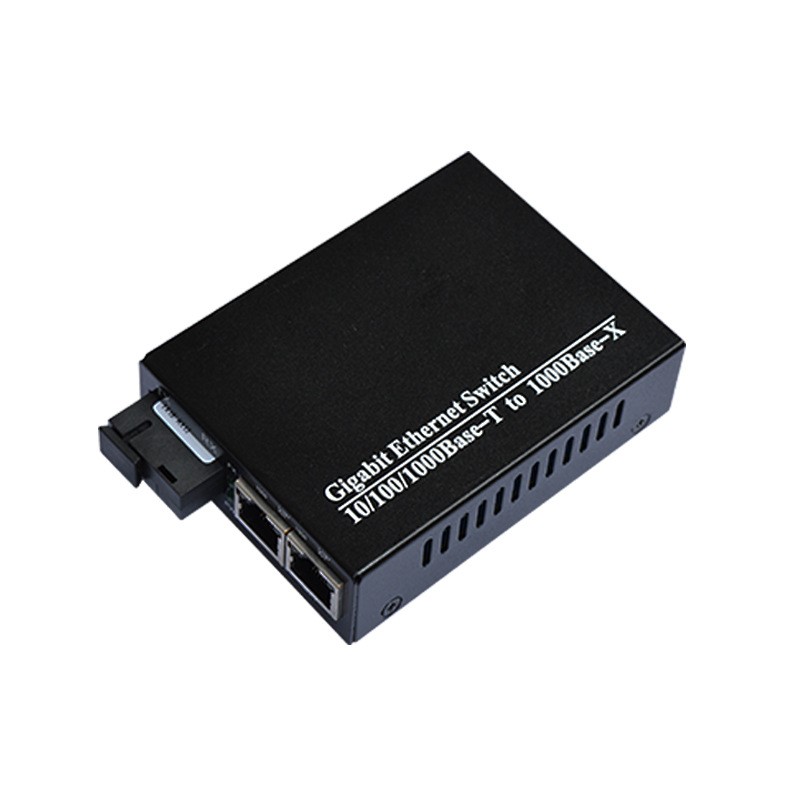

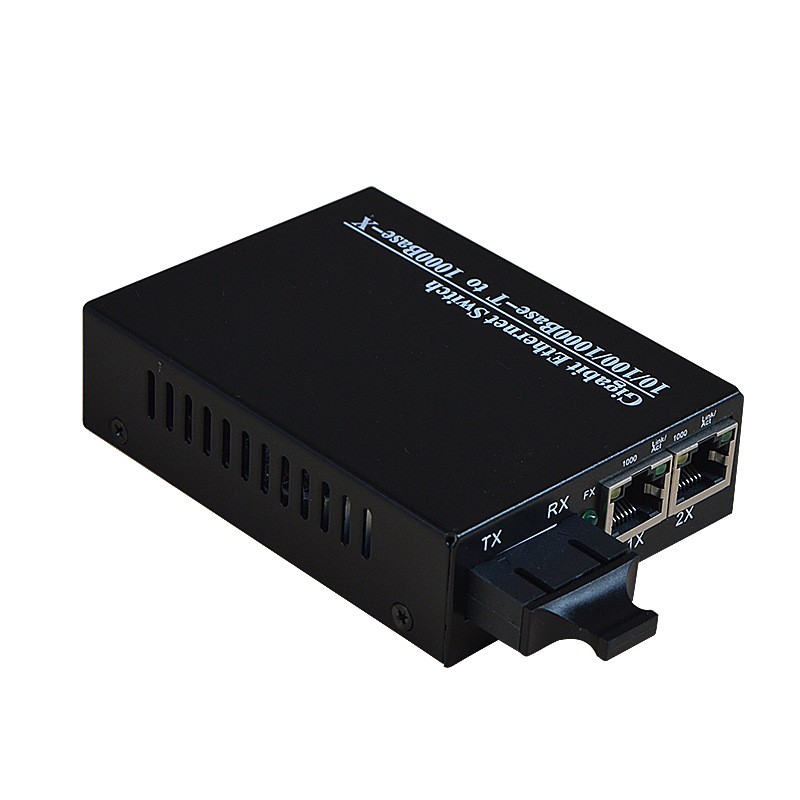

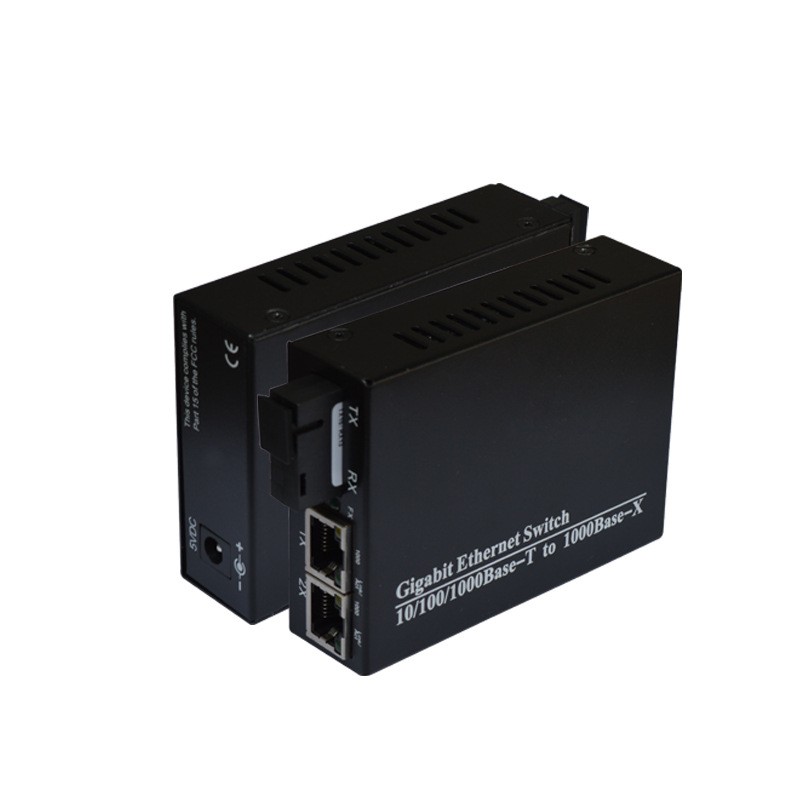

Fiber Optic Media Convertor 10 100 1000 DX 2 port100

Fiber Optic Media Convertor 10 100 1000 DX 2 port100

Part No.: FOCBS00147
1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply


Product Description

2 4 Port 10 100 1000 SC Ethernet Dual Fiber Optic Media Converter Price, 100M 1000M Fiber Optic to RJ45 Media Converters

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.

Key features

1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply

Technical information

1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure

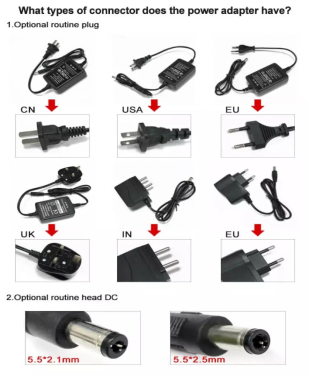

6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K

10/100/1000M Dual fiber

Connector type	SC	SC	SC	SC	SC
Fiber type	Multi-mode	Single-mode	Single-mode	Single-mode	Single-mode
Wavelength	850nm	1310nm	1310nm	1550nm	1550nm
Max Distance	62.5µm: 224m	20Km	40Km	60Km	80Km
Max Distance	50µm: 550m	20Km	40Km	60Km	80Km
Min TX PWR	-11.0dBm	-9.0dBm	-4.0dBm	-8.0dBm	-3.0dBm
Max TX PWR	-6.0dBm	-5.0dBm	0dBm	0dBm	0dBm
Sensitivity	< -18dBm	< -21dBm	< -24dBm	< -25dBm	< -25dBm
Link Budget	7.0dBm	12.0dBm	20.0dBm	17.0dBm	22.0dBm

10/100/1000M single fiber

Connector type	SC	SC	SC	SC
Fiber type	Single-mode	Single-mode	Single-mode	Single-mode
Wavelength	1310/1550nm	1310/1550nm	1310/1550nm	1490/1550nm
Max Distance	20Km	40Km	60Km	80Km
Min TX PWR	-10.0dBm	-4.0/-8dBm	0/-5.0dBm	-1dBm
Max TX PWR	-4.0dBm	0dBm	3/0dBm	3dBm
Sensitivity	< -22dBm	< -25dBm	< -25dBm	< -25dBm
Link Budget	12.0dBm	20/17dBm	25/20dBm	24.0dBm
