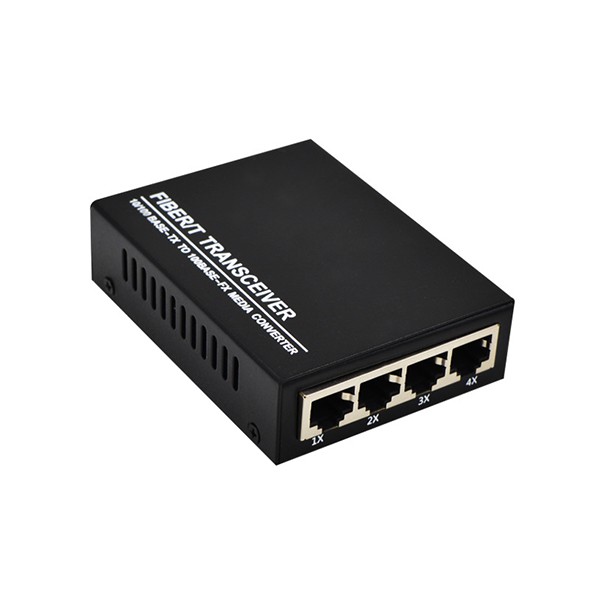

Fiber Optic transcevier 10 100

Part No.: FOCBS00149
Fiber Type:Single Fiber
Optic mode:Single Mode
Transmission mode:half / full duplex
Overall Power:2.5W
Ethernet interface:RJ-45
Optic interface:SC/FC/ST
BER: < 1/1000000000
Power supply: AC220V, DC5V/1A
Working temperature: 0~50°C
Storage temperature:-40°C~70°C
 Product size (L*W*H):94mm*70mm*26mm
Packing size (L*W*H):165mm*130mm*90mm
N.W/G.W(kg):0.14kg/piece  0.23kg/piece

  EMAIL



1.Product Description:

100Mbps Fiber Media Converter with 10/100M single mode Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Ethernet can be extended to the distance of 100km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.


2.Technical Parameters:

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter

Number of Network Ports

1 channel

Number of Optical Ports

1 channel


Transmission Rate

self-adaptive 10/100M

Protocol supported

IEEE802.3/IEEE802.3U etc.

Fiber Type

Single Fiber

Optic mode

Single Mode

Transmission mode

half / full duplex

Overall Power

2.5W

Ethernet interface

RJ-45

Optic interface

SC/FC/ST

BER

< 1/1000000000

Power supply:

AC220V, DC5V/1A

Working temperature

 0~50°C

Storage temperature

-40°C~70°C

 Product size (L*W*H)

94mm*70mm*26mm

Packing size (L*W*H)

 165mm*130mm*90mm

N.W/G.W(kg)

0.14kg/piece  0.23kg/piece





3Application picture:



SHENZHEN BESKCO TECHNOLOGY LIMITED  Founded in 2009. We are a leading professional manufacturer for FTTH Fiber optic product. BESKCO offers a wide range of telecommunication products and  also has the ability for customerized product according to customers’ needs. We always strive for being the communication systems integrator and optical solution provider leader.
