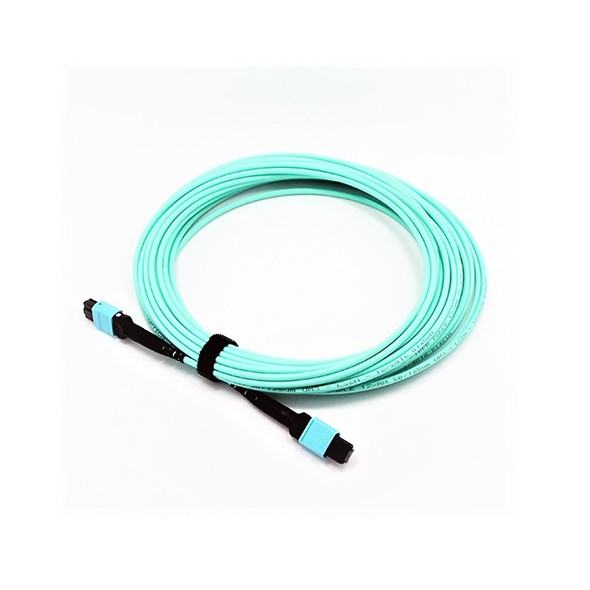

MTP / MPO Fiber Optic Patchcord

Part No.: FOCBS00101
Range of Mode:Single mode or Multi mode
Cable Type:Simplex, Duplex Ziocord. or Multi-cores
Connector Style:SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type:PC, UPC, APC
Cable Diameter:0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm

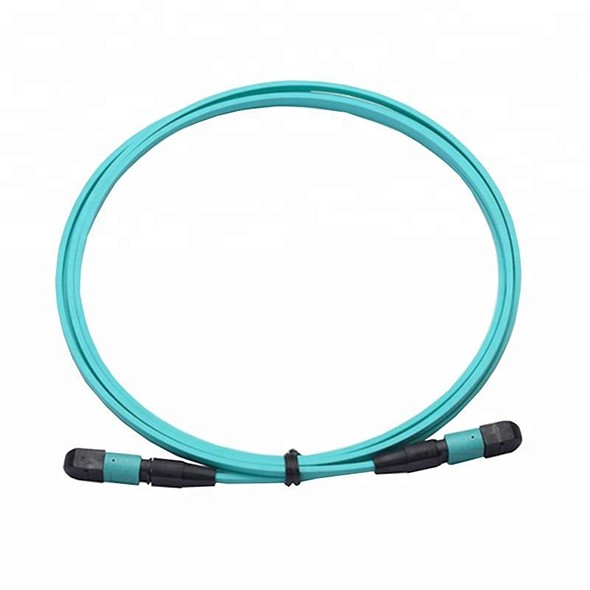

MTP/MPO Male/Female SM Multimode MM Fiber Optic Patchcord

Description

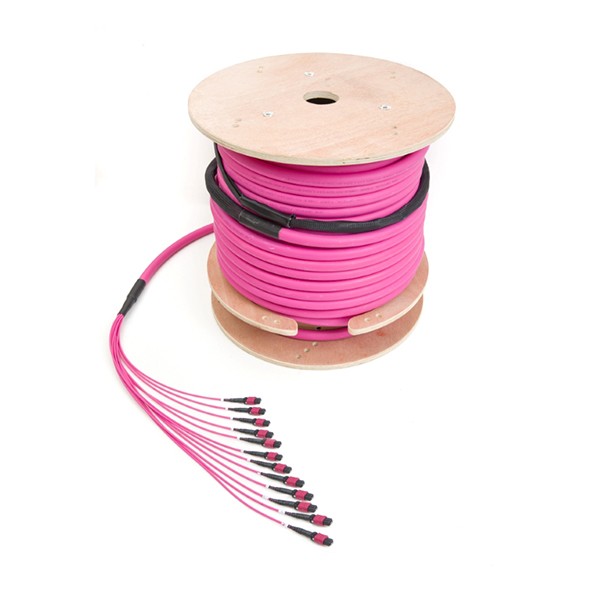

The MTP / MPO high-density cabling system combines high-density optical fiber jumpers and ribbon optical cables, which can be completed quickly on site. High-speed configuration is the background of the user data center gradually increasing high-capacity wiring, which can meet the needs of the data center. The ideal treatment plan you seek.

Applications

·In the wiring process, high-density integrated optical fiber line environment is required

· FTTX and 40/100G Connection application inside SFP, SFP+ transceiver equipment

Features:

· Stable and high quality

· Meet IEC, JIS, Bellcore international standard requirements

· High performance and cost effective

· Mass and flexible production meeting various demand

· Custom assemblies available upon request

· OEM available upon request

Mechanical & Material Data

Range of Mode	Single mode or Multi mode
Cable Type	Simplex, Duplex Ziocord. or Multi-cores
Connector Style	SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Diameter	0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket	PVC /LSZH/OFNP
Jacket Color	SM Yellow \| OM1, OM2 Orange \| OM3 Aqua \| OM4 Aqua or Violet \| OM5 Lemon Green
Durability	500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp.	-20 ℃ to +70℃/+85℃ (armored)
Storage Temp.	-40℃ to +85℃

Optical Performance Data

Item	Single mode			Multimoe
	PC	UPC	APC	62.5/125	50/125 OM1/2	50/125 OM3/4/5
Insert. Loss	0.2dB Max. (0.15dB Elite)			0.2dB Max. (0.15dB Elite)
Return Loss	≥50 dB	≥55 dB	≥60 dB	≥35 dB
Insert. Loss/MTP or MPO	0.7dB Max. (0.35 dB Elite.)			0.5dB Max. (0.35dB Elite.)
Return Loss s/MTP or MPO	≥50dB	≥55 dB	≥60 dB	≥20dB
Pull strength	≥68N	≥68N	≥68N	≥68N
