Fiber Optic Passive CWDM

Part No.: FOCBS00165
Parameters:1x2 1x4 1x8 1x16
Center Wavelength (nm):ITU, ITU+1
Passband (nm):ITU±6.5
Operating Wavelength (nm):1460~1620 or 1260~1620
Channel Space (nm):20

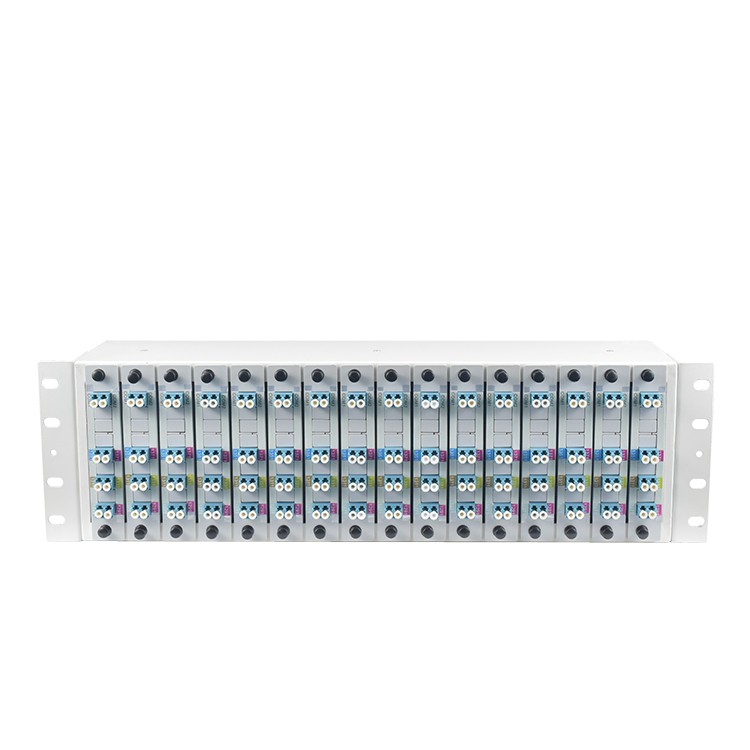

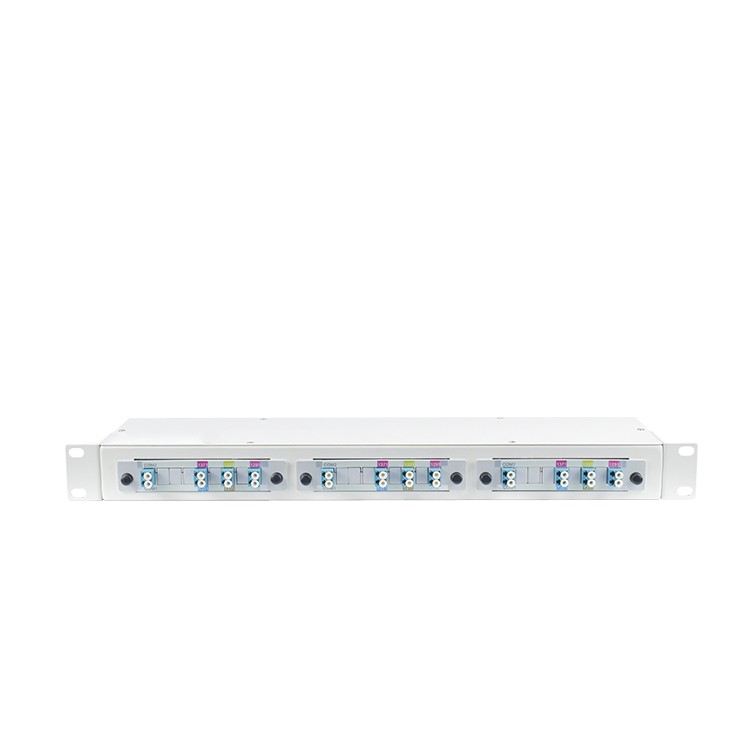

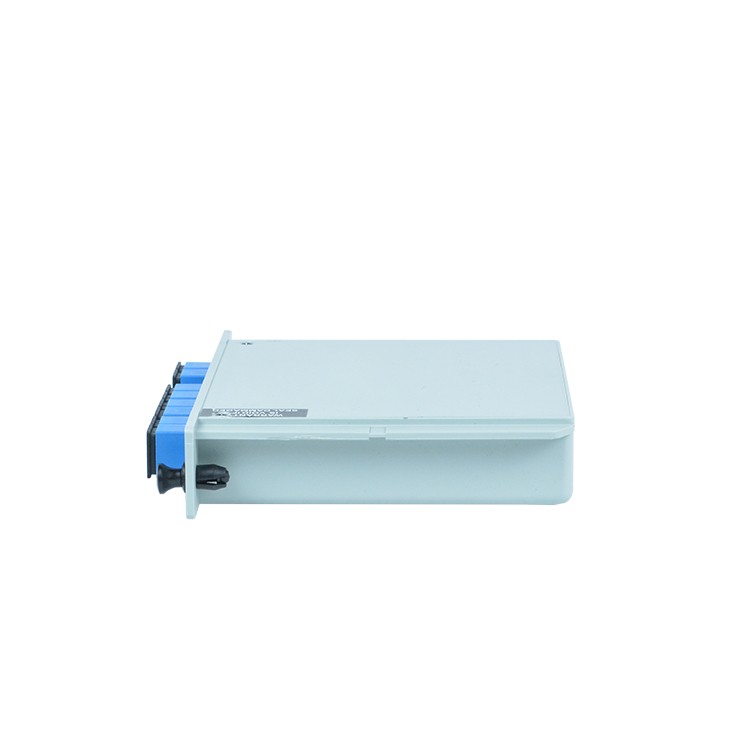

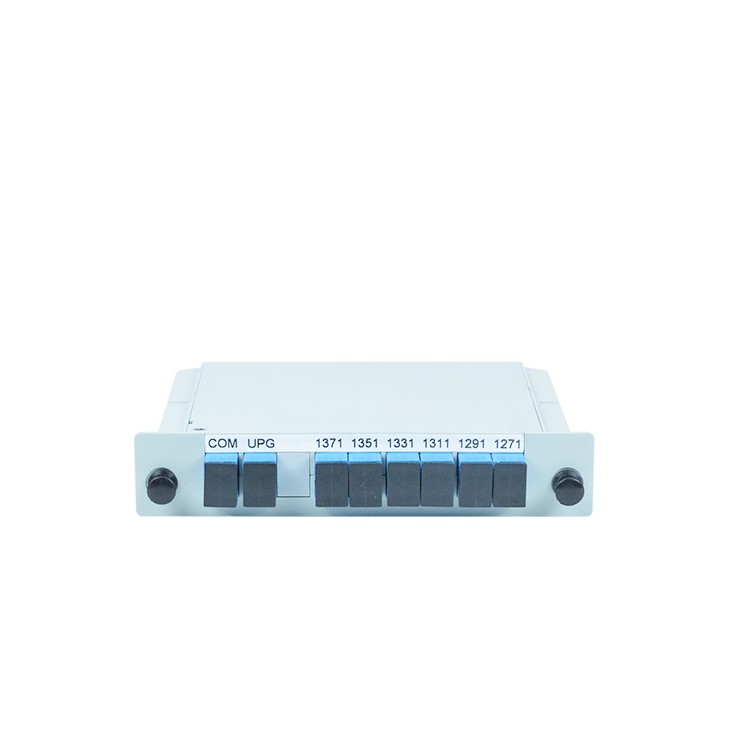

6CH CWDM WDM Mux/Demux Multiplexer Devices Fiber Optic Passive CWDM

Desrciption

Coarse Wave Division Multiplexing (CWDM) modules combine or split up to 18 wavelengths into a single fiber. CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 4 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths.

The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environmentCoarse Wave Division Multiplexing (CWDM) modules combine or split up to 18 wavelengths into a single fiber. CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 4 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths.

Specification

SPECIFICATIONS FOR CWDM MUX
Parameters	1x2	1x4	1x8	1x16
Center Wavelength (nm)	ITU, ITU+1
Passband (nm)	ITU±6.5
Operating Wavelength (nm)	1460~1620 or 1260~1620
Channel Space (nm)	20
Fiber Type	SMF-28e or customer specified
IL (dB) (P/A Grade)	0.7/1.0	1.4/1.7	2.0/2.5	3.5/4.0
Adjacent Channel	30
Non-Adjacent Channel	50
Ripple (dB)	0.3	0.4	0.5	0.5
PDL (dB)	0.2
PMD (ps)	0.1
RL (dB)	45
Directivity (dB)	50
Maximum Optical Power (mw)	500
Operating Temperature ()℃	-40~85
Storage Temperature ()℃	-40~85
