Outdoor Wall Mounted Box 48C

Part No.: FOCBS0032
Dimension:450MM*380MM*150MM
Material:Cold Rolled Steel
Cable Ports :48ports
Weight:7.5kg

  EMAIL

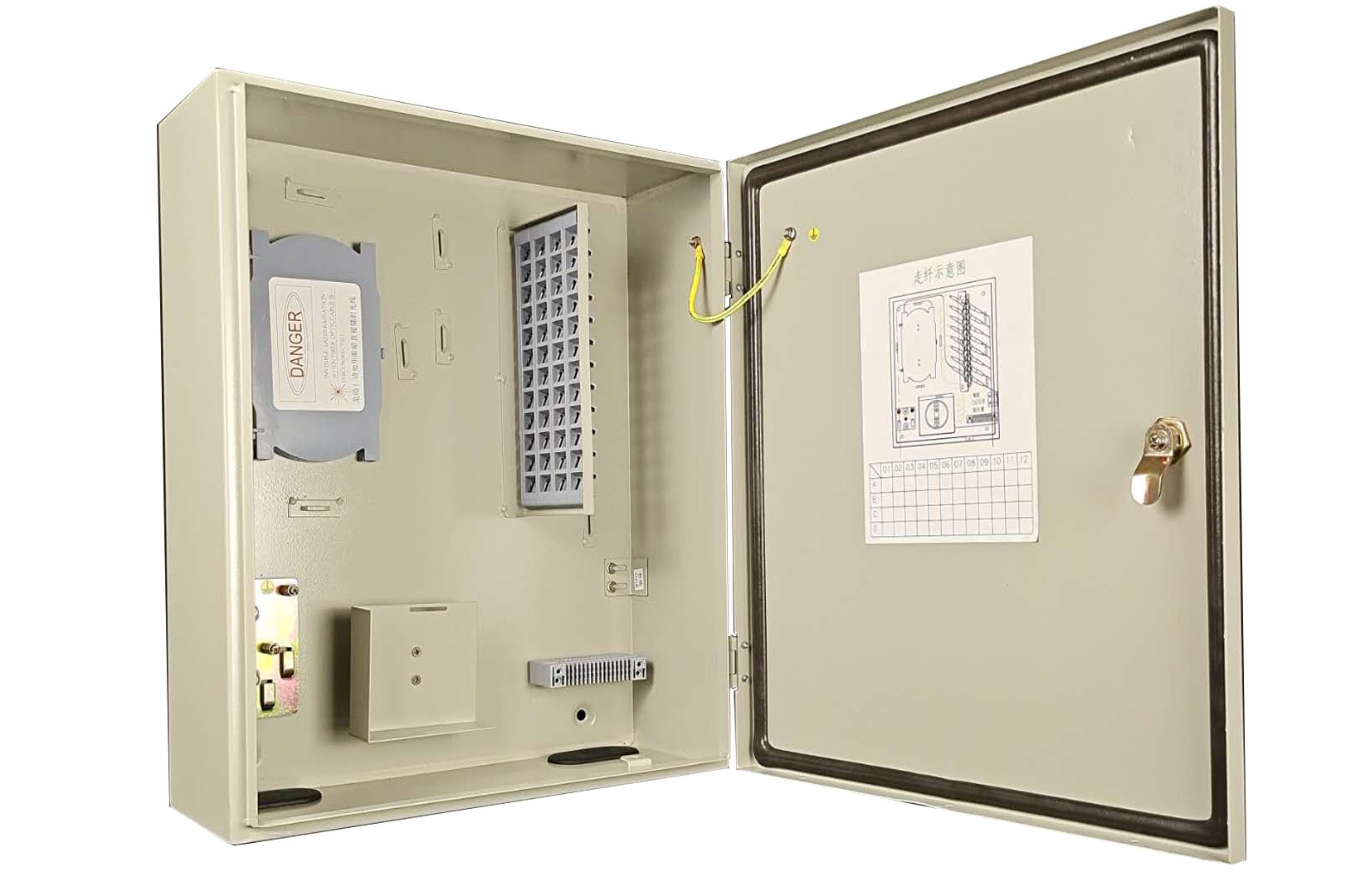

Outdoor Wall Mounted Box


Introduction

Fiber Termination BOX provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. IT is normally installed in the way of wall mounting or pole mounting.


Feature

1. Standard size, light weight and reasonable structure

2. Splice tray inside

3. Suitable for ribbon and single fiber

4. Various panel plate to fit different adapter

5. It can assure fiber optic cable bend radius not less than 40mm

6. Easy for management and operatio



Application

· Telecommunications subscriber loop

· Fiber to the home (FTTH)

· LAN/WAN

· CATV



Specification


Material

Cold Rolled Steel

Type

12-48 port

Working Temperature

-40℃~+85℃

Hummidity

≤85%(+30℃)

Level of Protection

IP65

Adaptor suitable type

SC LC FC ST


Dimension and accessories



Model

Fiber Quantity

Dimension

Weight(Kg)

BES-WMB-48

48

450MM*380MM*150MM

7.5

BES-WMB-24

24

450MM*380MM*110MM

6.3

BES-WMB-12

12

350MM*300MM*80MM

6.1
