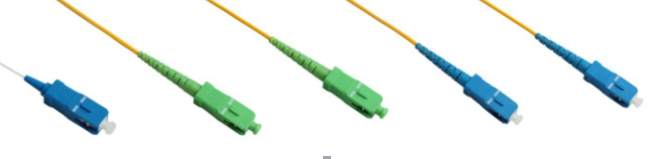

SC Standard Fiber Optic Patchcord

Part No.: FOCBS0098
Type:SM :PC,UPC,APC; MM


SC Standard Fiber Optic Patchcord

Specification

Type	SM				MM
	PC		UPC	APC	/
Insert Loss	≤0.30dB	≤0.30dB		≤0.30dB	≤0.20dB
Return Loss	≧45dB	≧50dB		≧60dB	/
Repeatability	≤0.2dB
Exchangeability	≤0.2dB
Resistance(≧1000times)	≤0.2dB
Industry Standard	ROHS、IEC、GR-326
Operating Temperature	-40℃~ +85℃
Storage Temperature	-40℃~ +85℃

Application

·CATV

·Telecommunication Networks

·Active Device Termination

·Local Area Networks(LANs)

·Wide Area Networks(WANs)

·Data Processing Networks

·Military

·Premise Installations

Features

·High Tempreture Stability

·Good Exchangeability

·Good Durability

·Low Insertion Loss

·Low Back Reflection Loss

·Standard:Telcordia GR-326-CORE

Availability

·Simplex/Duplex Patchcord Available

·Fan-out Available

·Pigtail Available

·Various Boot(cable) Size Available

·Various Fiber type Avaiable(G652D,G657A1,G657A2 etc.)

Order information

Connector Color

Boot(cable) Size

Boot Color

Fiber Type

Cable Number

Application

Length

Blue

Beige

Green

0.9mm

2.0mm

3.0mm

Blue

Beige

White

Black

Grey

Red

Green

9/125um(SM) G657A2,G657A1, G652D available

62.5/125um(MM)

50/125um(MM)

OM2 OM3 OM4

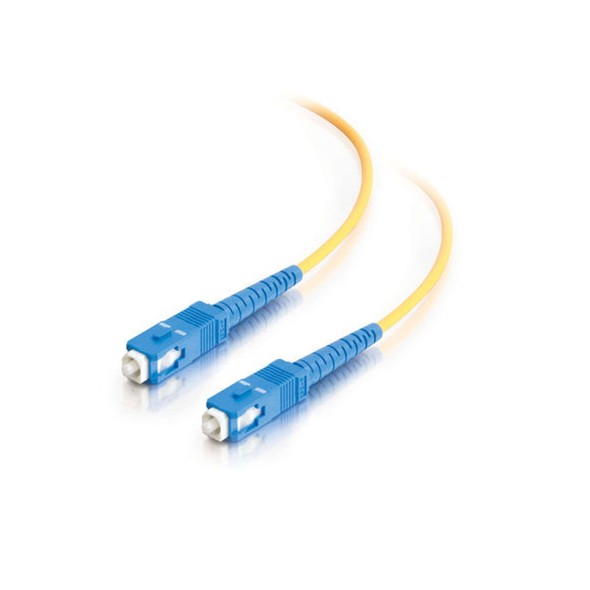

Simplex

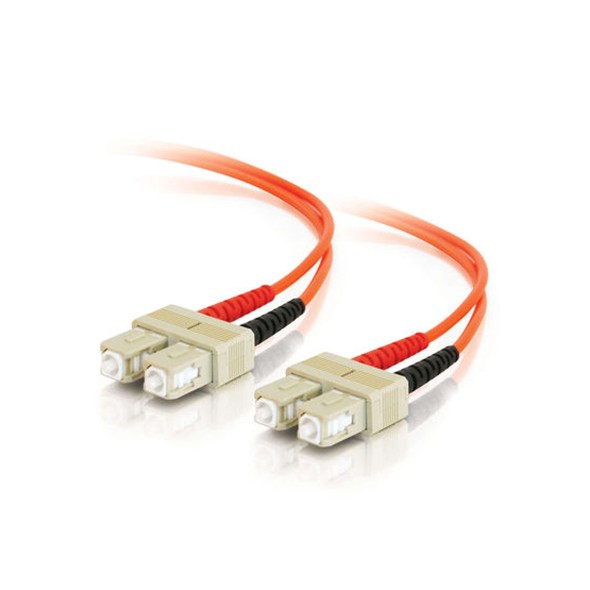

Duplex

Fan-out(4f)

Fan-out(6f)

Fan-out(8f)

Fan-out(12f)

UPC

APC

Customized
